Set up IPv6 VPC for Lambda to access public internet without NATGateway and public IPv4 address

Background

I created an AWS Lambda behind the AWS ApiGateway, it also connects an RDS instance which is placed in a private subnet. The Lambda needs to call an external server (AppStore Server). I followed some docs and created an NATGateway for testing, until I saw the charge of the NATGateway on the AWS bill in a few days.

Options

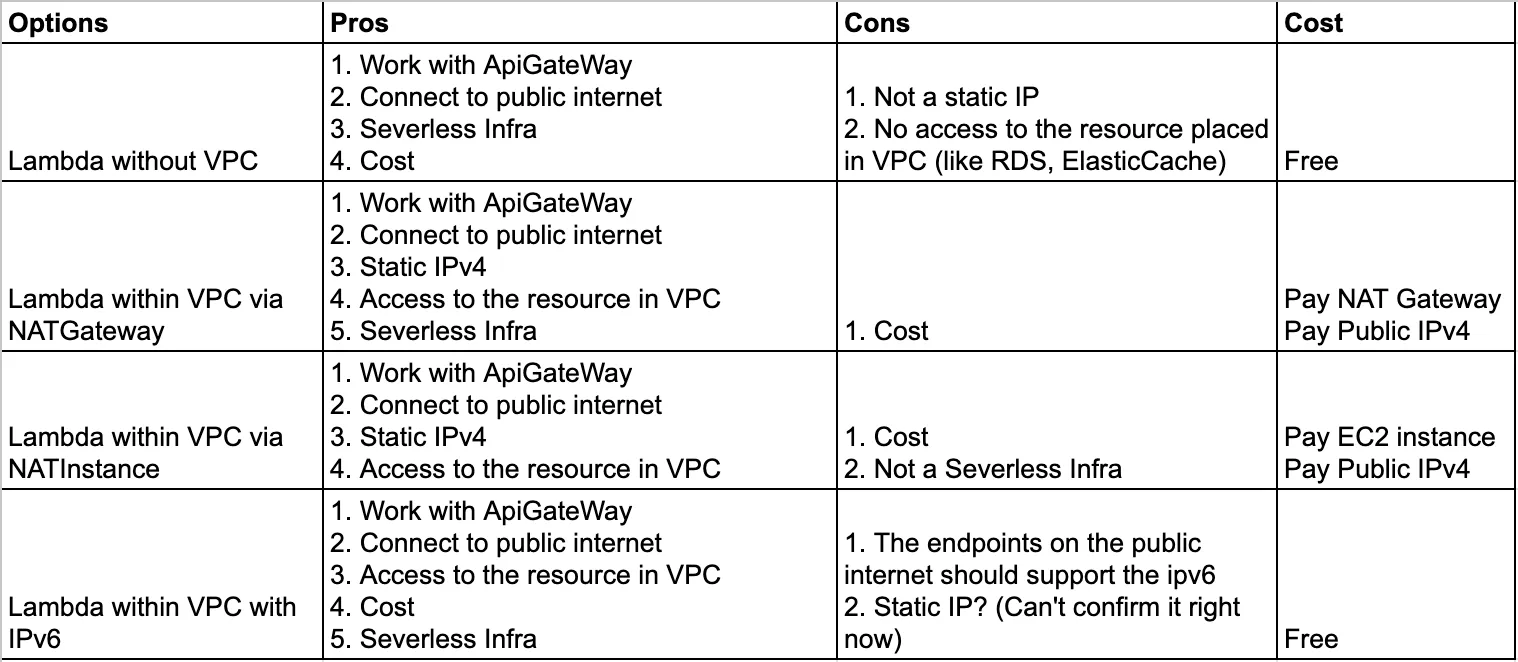

After digging into the case in these days, I have several potential ways to connect AWS Lambda to the public internet with charge or no charge at all.

5-1 diagram

About the NATGateway pricing and Public IPv4 pricing:

  • NATGateway: You have to pay at least ~$30/month even no data processing and transfer.
  • Public IPv4 (including Elastic IPv4): New charge takes effect on February 1, 2024. $0.005/hour per 1 ip for in-use or idle.

(Both of them are available on: https://aws.amazon.com/vpc/pricing/)

Decision

Based on the Principle

  1. Security: Protect user’s data, also protect my infrastructures
  2. Cost: As cheap as possible during the startup phase.

Result

Now I run the Lambda within a dual stack (both IPv4 and IPv6) VPC. The infra was built by CDK. Lambda is connecting to public internet with an IPv6 address and to the RDS in the private VPC. No public IPv4 address at all.

Implementation

There are ton of the blogs/articles on the internet to show the process for setting up Lambda + NATGateway/NATInstance. So I won’t copy them again.

Next, I’ll show how to set up the Lambda into a dual stack VPC including the RDS, with no public IPv4.

Overall Infrastructure

5-2 diagram

Code

All the Typescript code is based on the "aws-cdk-lib": "^2.122.0", (released on 2024-01-18, as of 2024-01-21). I read a bunch of the AwsCDK GitHub issues, they released a few change related to the IPv6 recently, so use the latest version. My understanding, even the latest CDK lib, not fully support the CDK L3 constructs/api, have to use the CloudFormation L1 constructs to enable the features.

Create Network

Have listed the network config on the Overall Infra diagram.

Three types of the subnets:

  • PRIVATE_WITH_EGRESS or Service is a private subnet with an egress-only internet gateway (EIGW), can connect to the Internet, but will not allow connections to be initiated from the Internet.

  • PRIVATE_ISOLATED or DB is an absolutely private subnet, only can be accessed within VPC.

  • PUBLIC or Public can access the internet via internet gateway, I’ll place an EC2 instance as bastion host later.

The key points are explained in code.

Note: you may see the examples to create route table for IPv6 on other articles. This is not needed as it is built into CDK for Dual-Stack-VPC in new release.

    this.vpc = new Vpc(this, 'Vpc', {
      ipProtocol: IpProtocol.DUAL_STACK, // Key point: Enable Dual stack
      maxAzs: 2,
      natGateways: 0, // Key point: No NATGateway will be created automatically.
      subnetConfiguration: [
        {
          cidrMask: 24, // Key point: only used for IPv4
          name: 'Service',
          subnetType: SubnetType.PRIVATE_WITH_EGRESS, // Key point: Lambda need the 'egress'
        },
        {
          cidrMask: 24,
          name: 'DB',
          subnetType: SubnetType.PRIVATE_ISOLATED,
        },
        {
          name: 'Public',
          subnetType: SubnetType.PUBLIC,
          mapPublicIpOnLaunch: false,
        },
      ],
    });
    // Key point: create the cidr for IPv6,
    // `amazonProvidedIpv6CidrBlock` would create a CIDR with a /56 prefix length for VPC
    const ipv6cidr = new CfnVPCCidrBlock(this, 'CIDR6', {
      vpcId: this.vpc.vpcId,
      amazonProvidedIpv6CidrBlock: true,
    });
    const publicSubnetIds = this.vpc.publicSubnets.map((i) => i.subnetId);
    this.vpc.publicSubnets
      .concat(this.vpc.privateSubnets)
      .concat(this.vpc.isolatedSubnets)
      .forEach((subnet, index) => {
        // don't miss this
        subnet.node.addDependency(ipv6cidr);
        // Key point: override the CIDR to a /64 prefix length
        // must be /64 for subnet
        const cfnSubnet = subnet.node.defaultChild as CfnSubnet;
        cfnSubnet.ipv6CidrBlock = Fn.select(
          index,
          Fn.cidr(
            Fn.select(0, this.vpc.vpcIpv6CidrBlocks),
            256,
            '64'
          )
        );
        // this flag has been exposed to L3, only using it here works
        cfnSubnet.assignIpv6AddressOnCreation = true;
        // Key point: make `Public` subnet IPv6 only and remove IPv4 CIDR
        // Can't apply this to `Service` and `DB` subnet because Lambda and RDS don't support IPv6-only subnet
        if (publicSubnetIds.includes(subnet.subnetId)) {
          cfnSubnet.ipv6Native = true;
          cfnSubnet.cidrBlock = undefined;
        }
      });

Create Lambda

Use the CloudFormation L1 constructs to enable the IPv6 flag.

The Lambda function API for VpcConfig: https://docs.aws.amazon.com/lambda/latest/dg/API_VpcConfig.html#SSS-Type-VpcConfig-Ipv6AllowedForDualStack

You also can find the IPv6 flag on Lambda console under “Configuration”->“VPC”->“Subnets”->“Allow IPv6 traffic”

    const lambda = new Function(this, 'Handler', {
      ...
      ipv6AllowedForDualStack: true, // from awscdk v2.129.0
    });

Create RDS Instance

Enable the dual network flag, easy change:

      this.dbInstance = new rds.DatabaseInstance(this, 'RDS', {
        ...
      networkType: NetworkType.DUAL,
    });

Create Bastion Host

Only AWS Nitro System is able to support ipv6-only subnet, so choose the correct instance.

https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/instance-types.html#ec2-nitro-instances

The instance also can be used as a NATInstance which has the similar functions like NATGateway or Egress-Only-Internet Gateway. (A lot of articles to guide the setup for NATInstance)

    const bastion = new ec2.Instance(this, `bastion`, {
      vpc: props.vpc,
      securityGroup: props.publicSecurityGroup,
      vpcSubnets: { subnetType: ec2.SubnetType.PUBLIC },
      instanceType: ec2.InstanceType.of(...), // choose an instance which can support ipv6-only
      machineImage: ec2.MachineImage.latestAmazonLinux2023(),
    });

Reference

Enabling IPv6 on Resources and VPCs: https://github.com/aws/aws-cdk/issues/894

Fun Fact

Right now, the Lambda can access the public internet with IPv6 address, however, I can’t shoot the goal of calling AppStore Server from the Lambda.

Why?

Guess it :)

Updates

Created on 2024-01-21

Update on 2024-02-08: add bastion host part

Update on 2024-05-28: update ipv6AllowedForDualStack to lambda stack, based on awscdk latest release
